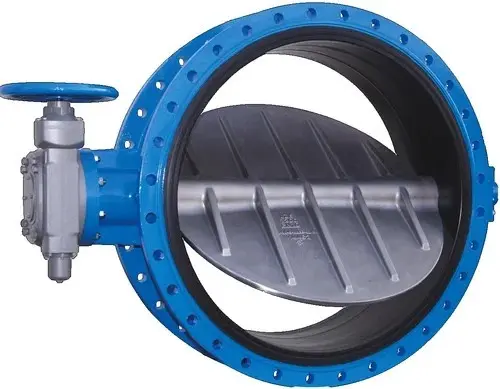

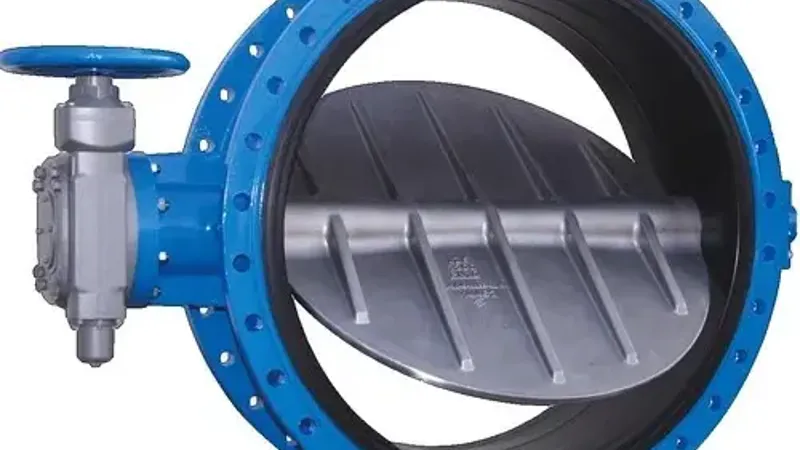

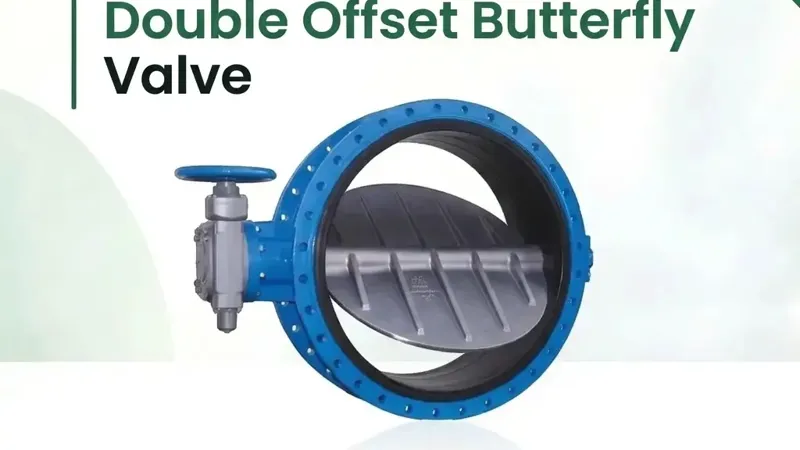

Double Offset Butterfly Valve

Double Offset Butterfly Valve Manufacturer: FlowBiz Exports

The FlowBiz Double Offset Butterfly Valve features a unique geometry where the shaft is offset from the centerline of the seat and the centerline of the pipe. This "double eccentricity" allows the disc to "cam" into the seat, significantly reducing friction during opening and closing. This design ensures lower operating torque and a much longer life for the sealing surfaces.

Technical Specifications

Feature

Specification Details

Size Range

$2\frac{1}{2}\text{ inches}$ to $48\text{ inches}$ ($65\text{mm}$ to $1200\text{mm}$)

Seating Options

Polymer (Soft) Seat or Metal-to-Metal Seat

End Connections

Wafer, Lugged, or Flanged (Standardized)

Control Type

On/Off or Throttling Control

Applications

Gases, Liquids, and Corrosive Media

Key Features & Advantages

  • Reduced Friction & Wear: The double-offset geometry allows the disc to move away from the seat almost immediately upon opening. This minimizes seat wear and prevents "rubbing," which is the leading cause of failure in standard butterfly valves.
  • Replaceable Seat Design: Unlike many high-performance valves, FlowBiz designs feature an easily accessible and replaceable seat. This allows for simple field maintenance without needing to replace the entire valve body.
  • Low Operating Torque: Because the disc doesn't rub against the seat throughout its travel, it requires significantly less force to actuate, allowing for smaller, more cost-effective pneumatic or electric actuators.
  • Bubble-Tight Shut-Off: Available with advanced polymer seats for zero-leakage in liquid/gas service or metal seats for high-temperature and abrasive applications.
  • Bi-Directional Sealing: Engineered to maintain seal integrity regardless of the flow direction, providing flexibility in pipeline installation.

Strategic Industrial Applications

FlowBiz Double Offset Butterfly Valves are optimized for high-cycle and critical services:

  • Offshore & Marine: Saltwater cooling, ballast systems, and firewater lines.
  • Chemical & Petrochemical: Handling aggressive process media and volatile organic compounds (VOCs).
  • Power Generation: Condenser cooling water, circulating water, and steam isolation.
  • Water Treatment: Large-diameter filtration and distribution systems requiring long-term reliability.

Why Choose FlowBiz Exports?

As a premier manufacturer and global supplier, FlowBiz provides:

  1. Versatile Range: Covering small-bore $65\text{mm}$ units up to massive $1200\text{mm}$ industrial valves.
  2. Quality Compliance: Manufactured to international standards for safety and performance.
  3. Pan-India Support: Rapid delivery to hubs including Mumbai, Ahmedabad, Pune, Chennai, and beyond.

Contact Information

Reach out to the FlowBiz technical team for expert guidance and quick quotes:

Request Your Quick Quote Today!

Enhance your system reliability with the high-performance engineering of FlowBiz Double Offset valves. We provide Easy and Quick Quotes for domestic industrial projects and large-scale global exports.

Contact FlowBiz Exports Pvt. Ltd. now – Your premier partner for High-Performance Butterfly Valves.
